FLAMENCO PROSPECT: HIGHLY PROSPECTIVE AREA

Flamenco area shows great potential for locating Gold mineralization related to Skarn, Distal Skarn & CRD.

Regional & Geological Items

This area gather the main regional items within one single region which could favor deposition of gold mineralization.

  • Strong Mag Feature Anomaly (related to Tc Miocene volcanic recent dating: 20my).
  • Carbonatic (Reactive Host Rock) strongly Altered to Marble.
  • Favorable NE, NS and NW Structural controls.

In total, 2200 Ha recently granted in a known mineralized District. Very little drill hole exploration has occurred outside the local area of known Gualcamayo Open Pit where more than 7M Oz of Au has been mined.

Flamenco Prospect Map

Map/Diagram: Tenements, Limestone, Au Mineralization

Target Interpretation & Geochemistry

Skarn Pb-Ag-Zn-Au? / CRD's Zn-Pb-Ag-Zn-Cu (Peter Megaw Model applied). Real Potential at depth.

Preliminary field evaluation shows potential for marble/sulphides Rich front (altered limestone aureola's).

  • Logistics: Easy access, low elevation target 1500m RL, 5km from Gualcamayo Mine, Excellent Infrastructure.
  • Geochemistry: Interesting preliminar geochemistry up to 1.5% Cu; 2600ppm Mo, 60ppm Ag, >4000ppm As.

Visual Evidence

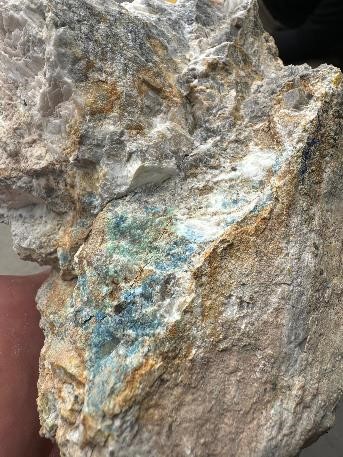

Hand Sample - Mineralized Rock

Historical Copper-Barite-Galena BX Mineral occurrence right in center of Flamenco Property

Aerial View of Terrain

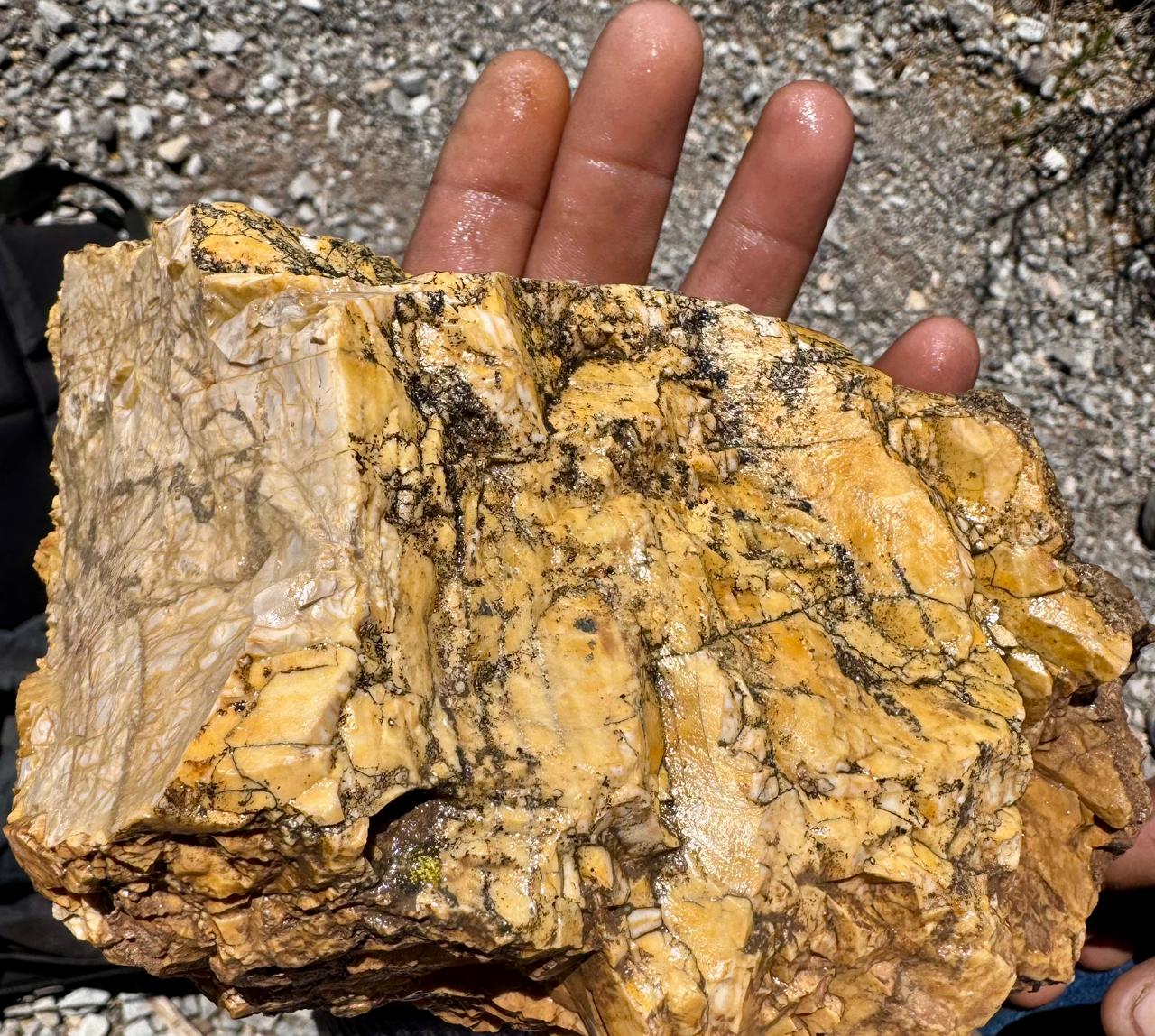

Jaspe outcropping, altered limestone strongly silicified with diss sulphides.

Cross Section A-A'

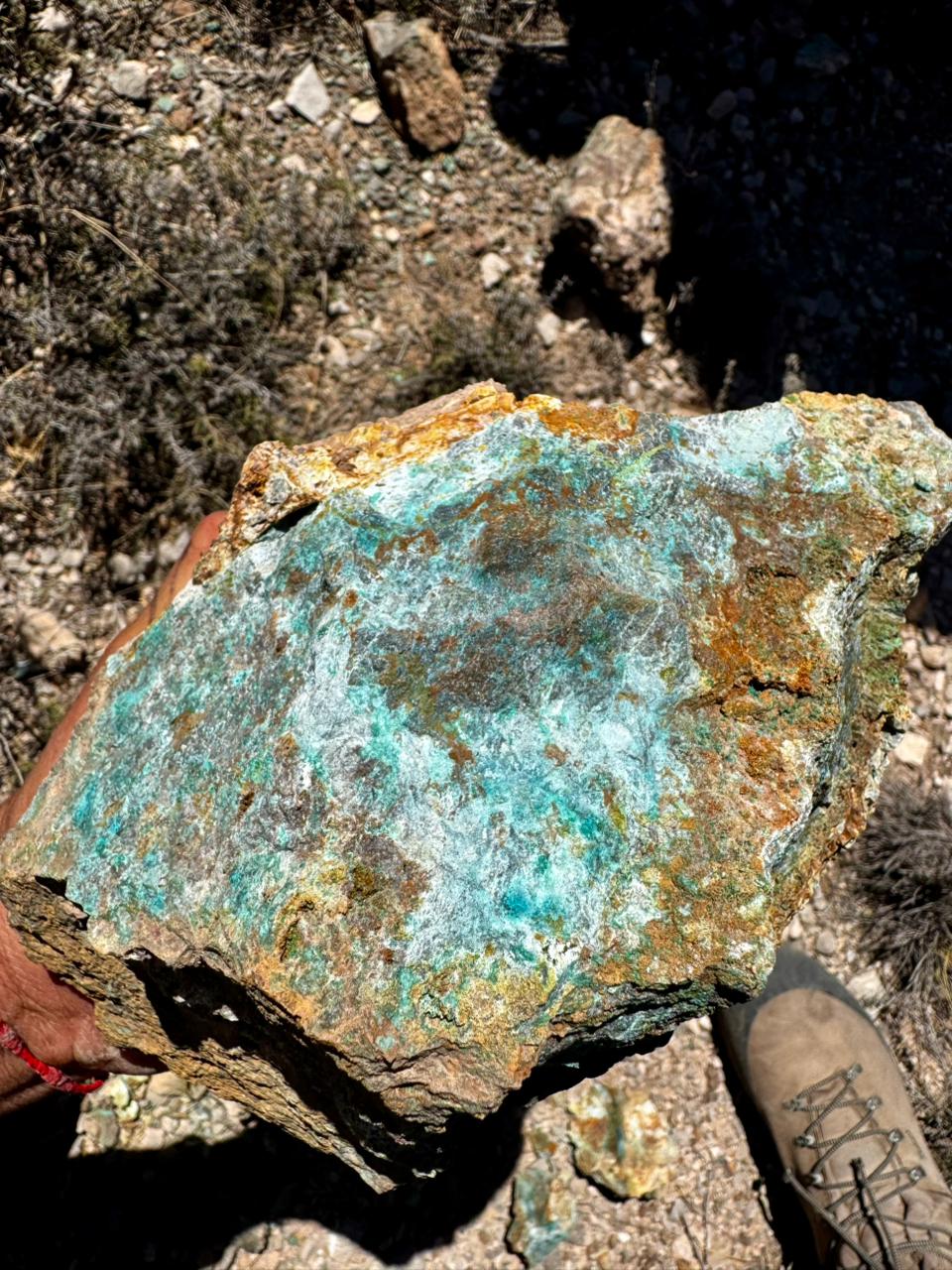

Strongly mineralized limestone with chalcopyrite and CuOx within historical mine work within Flamenco Property.

TARGET INTERPRETATION

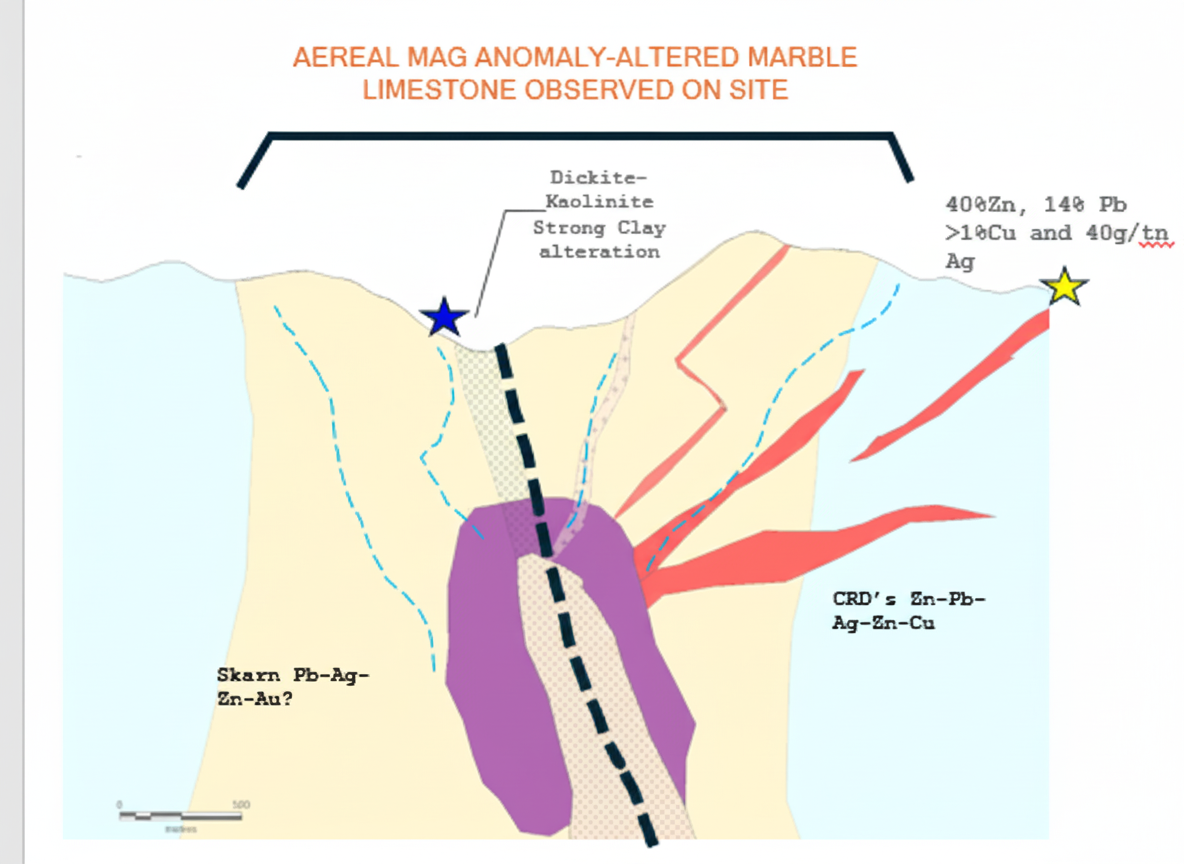

Conceptual Diagram (Section A-A')

Conceptual geological diagram

Diagram illustrating the interpreted geological cross-section (A-A') for target definition. (Click to enlarge)

Section A-A': Legend and Interpretation

AERIAL MAG ANOMALY IN ALTERED MARBLE AND LIMESTONE OBSERVED ON SITE

Reactive Limestone (Ordovician)

Host Rock. Historical Cu-Ag-Pb-Zn Mining.

Marble (Strong Altered Limestone)

2.6 km on strike from 'Goethite Garden'.

Carbonized Siliciclastic

Altered to A.A. (Advanced Argillic Alteration).

Felsic Dyke

Recent Dating. 20mV Fugitive Calcite observed on site.

CRD's (Carbonate Replacement Deposit) Mineralized Orebody

Key Mineralization and Alteration:

  • Skarn (Pb-Ag-Zn-Au?): Identified at the contact zone.
  • CRD's (Zn-Pb-Ag-Sn-Cu): Main mineralized orebody interpreted at depth.
  • Argillic Alteration: Strong Dickite-Kaolinite alteration near the feeder zone.
  • Surface Anomalies: 40% Zn, 14 g/t Pb, >10 Cu, and 40 Au/t Ag in peripheral zones.
  • Main Fault: N/S Thrust-Fault, providing structural control.

Deep and Strategic Potential

  • Peter Megaw Model applied to Flamenco.
  • Real Potential at Depth (>1.5km) never explored.
  • Low elevation target (150m), facilitating easy access.
  • Located only 5km from the Gualcamayo Mine.
  • Excellent Infrastructure in the region.

Target Status

The CRD mineralized orebody potential has never been explored at depth (Drilling never Explored-drilled).
